Shenzhen Daking Optoelectronics Co., Ltd.

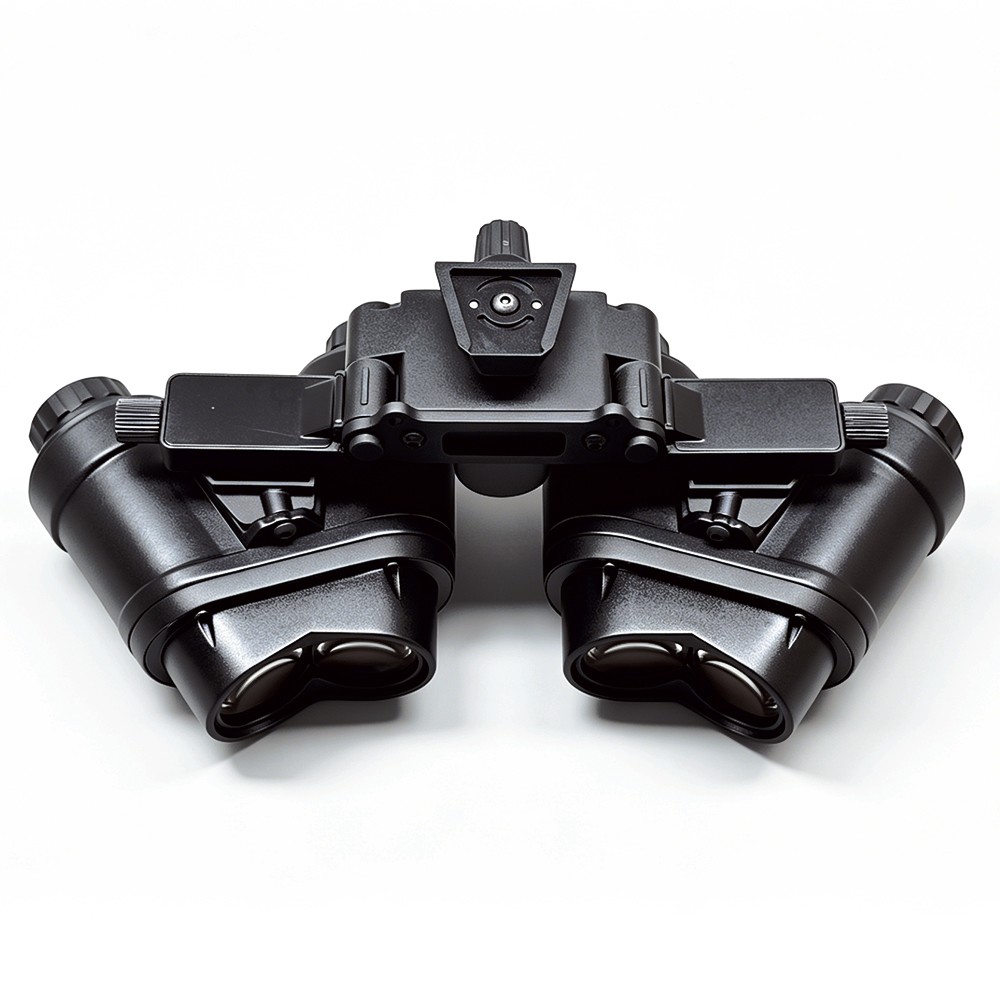

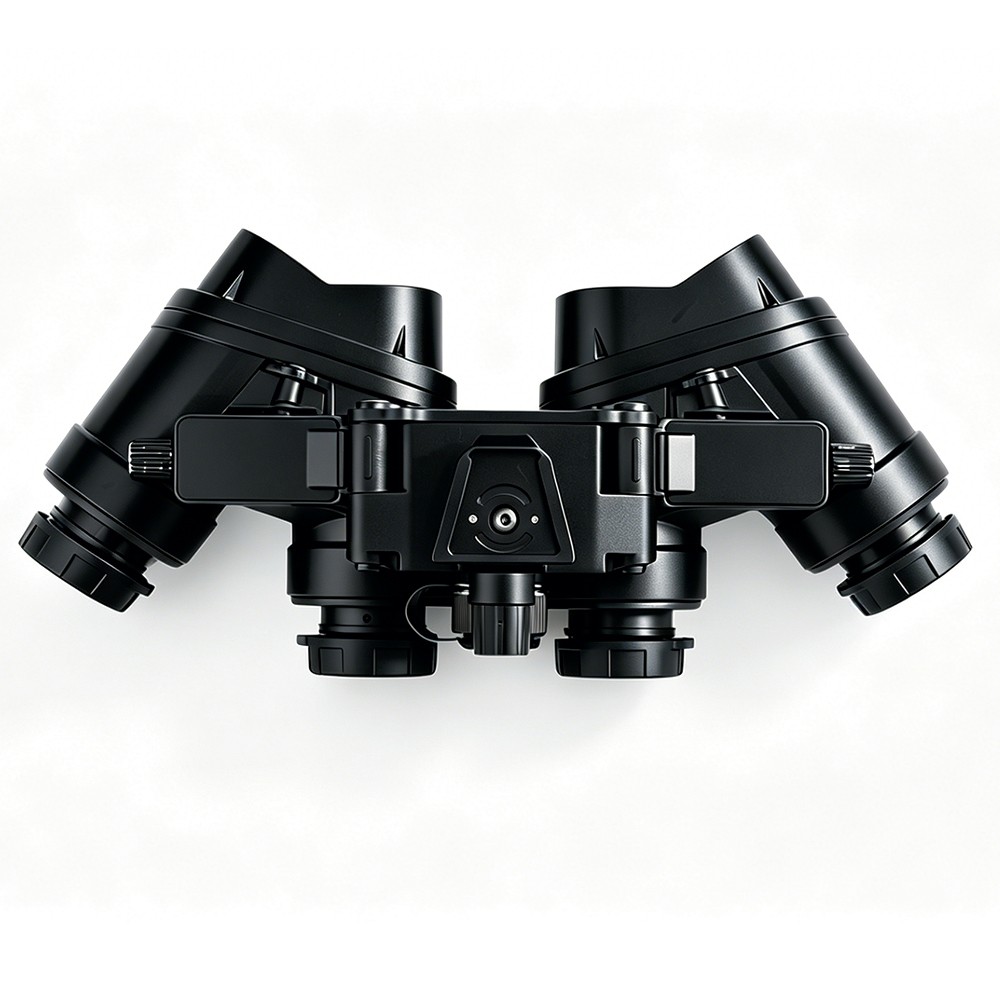

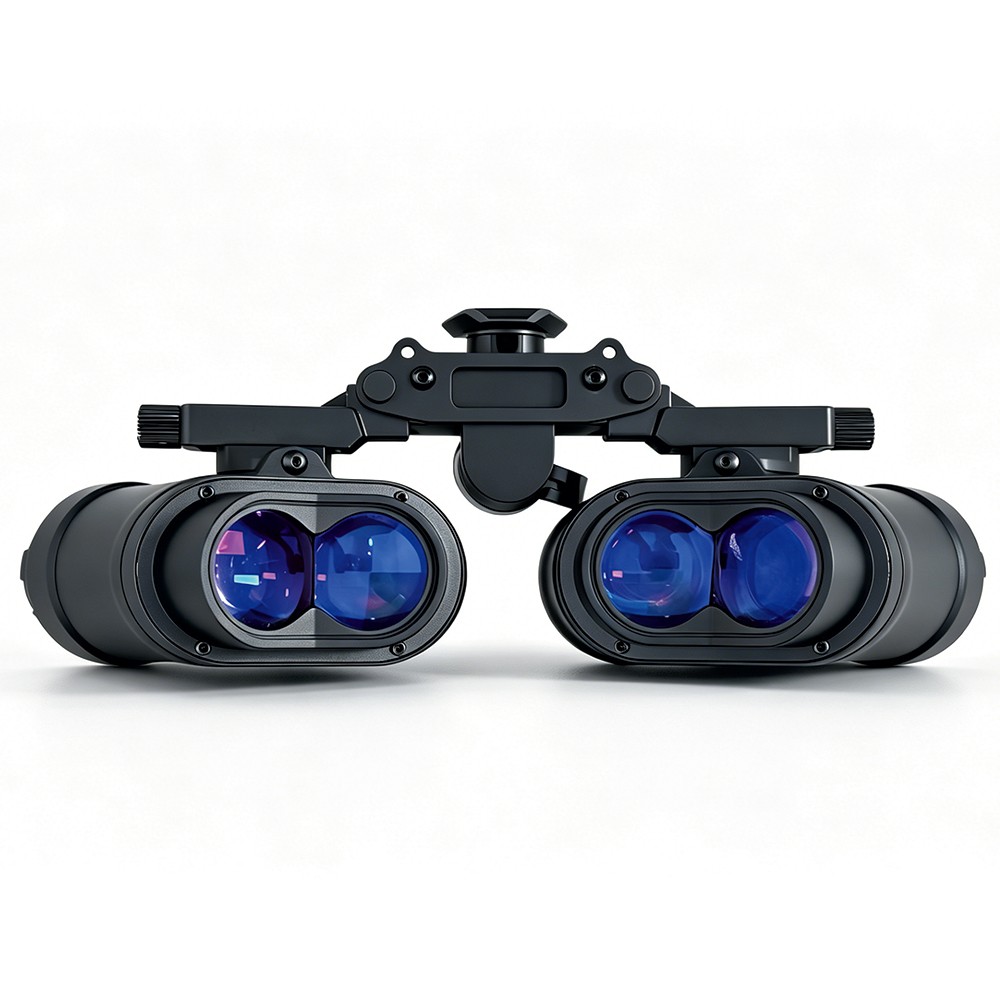

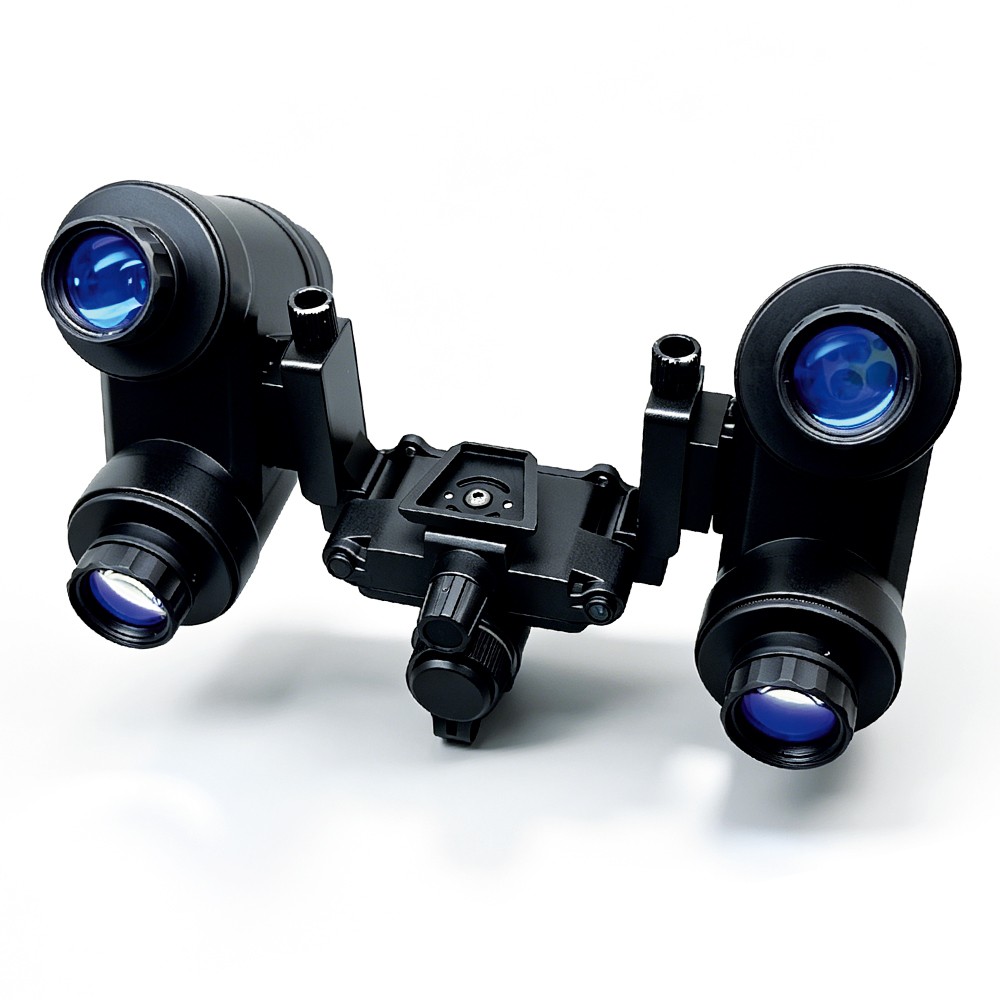

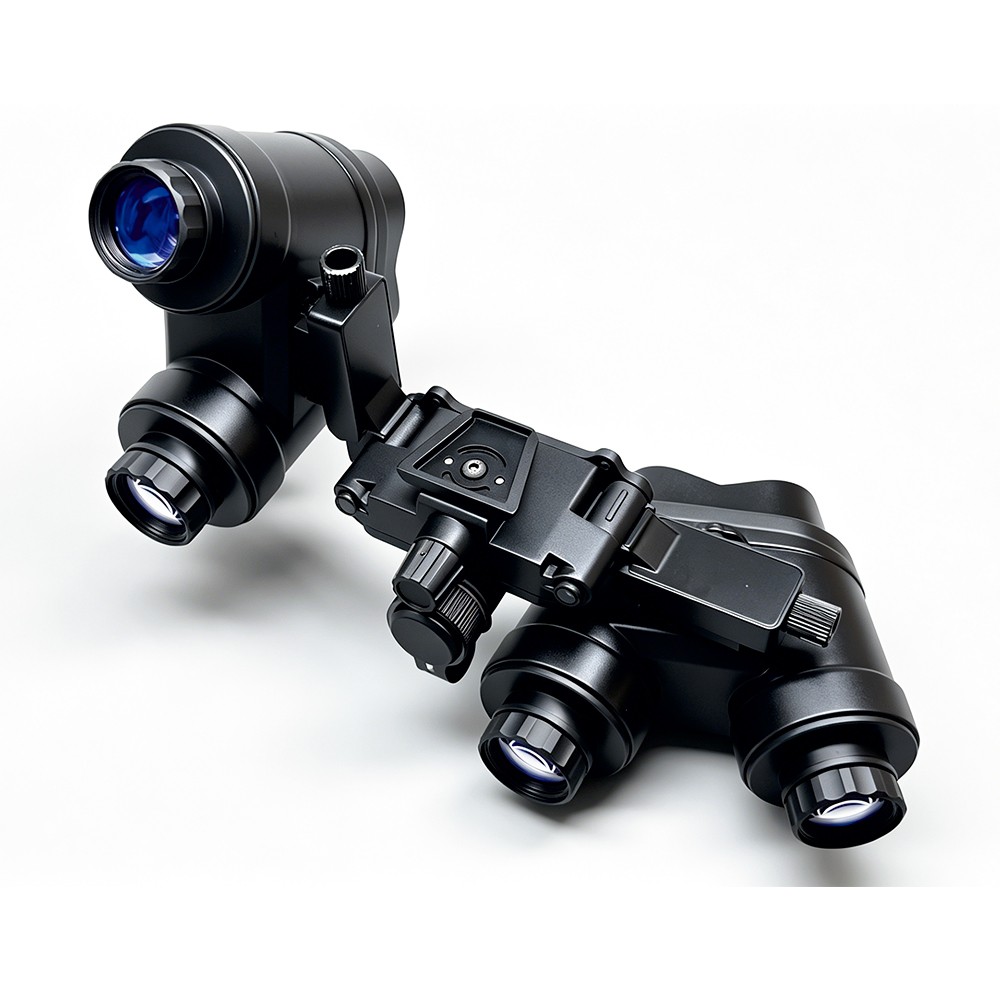

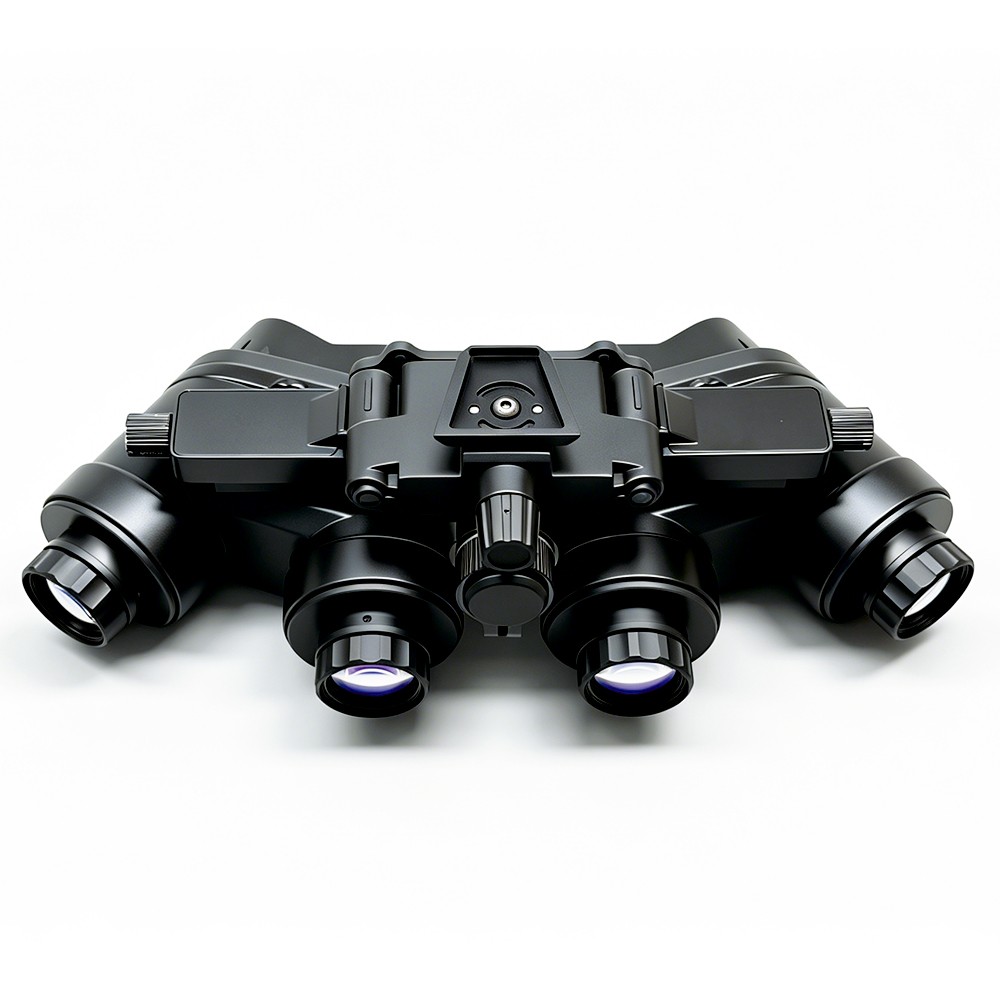

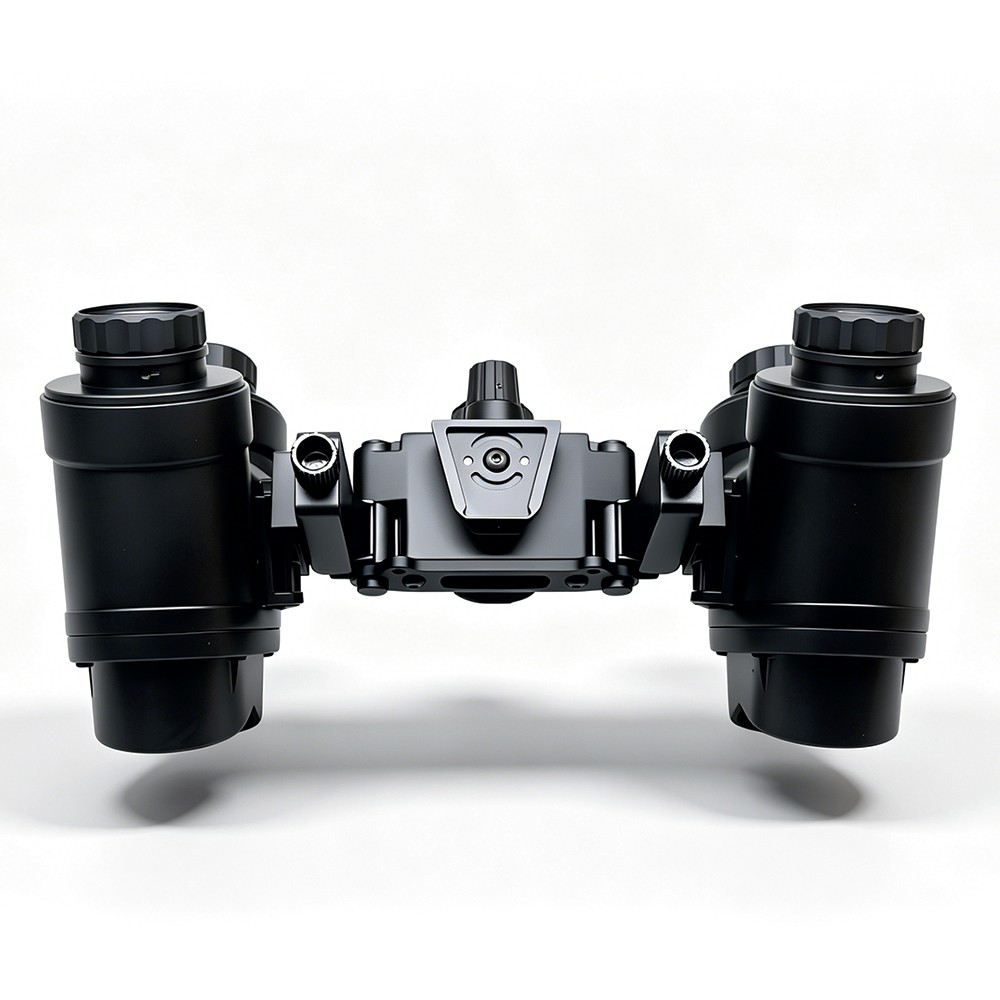

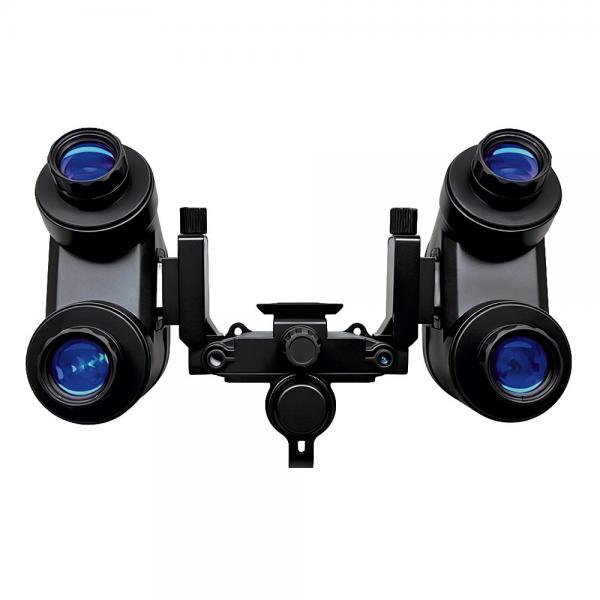

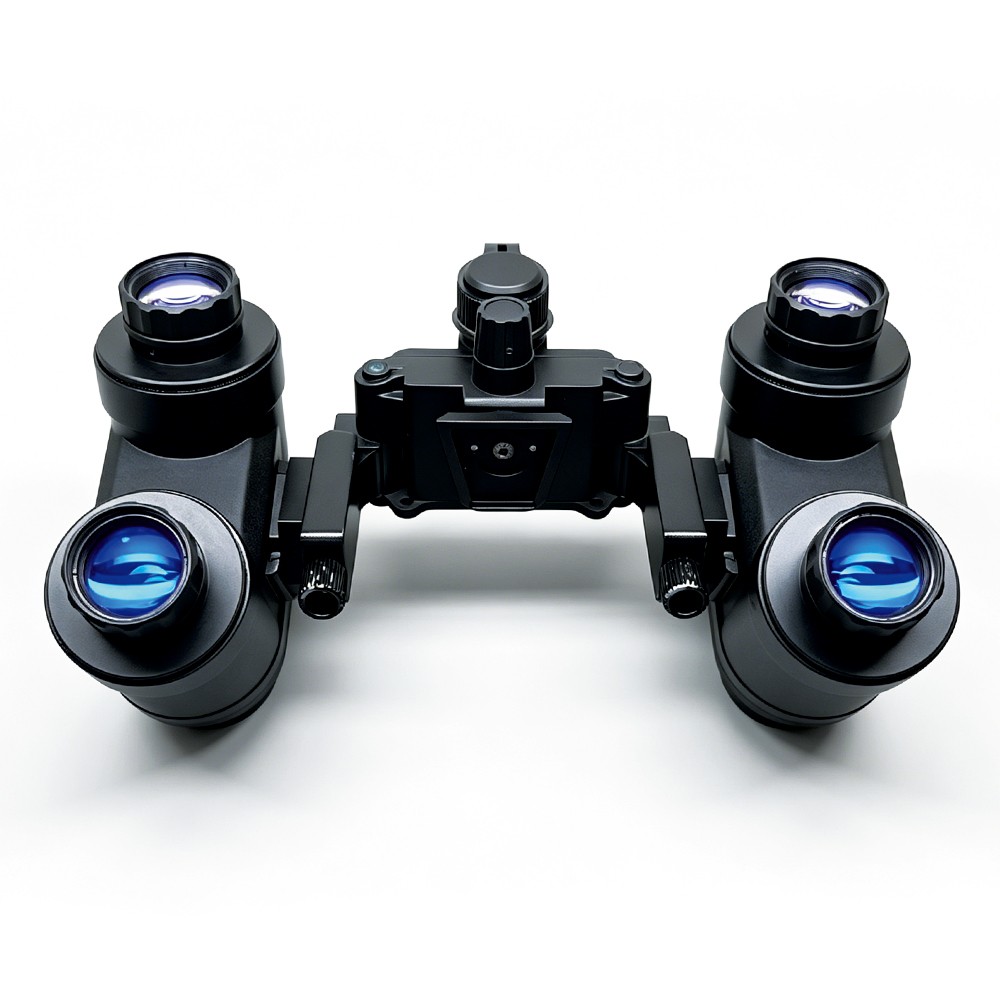

This lightweight, foldable four-eye panoramic low-light night vision device represents the next evolutionary stage of such instruments. It combines advanced panoramic night vision performance with a compact, ergonomic design. The foldable barrel can be opened or closed by tilting it sideways, while its rear-folding mechanism achieves an optimal profile that reduces neck strain and ensures balance and comfort during prolonged use. Equipped with a high-performance Generation 2+ image enhancer (and optional Generation 3 enhancer), the device offers compact size, lightweight construction, an expansive field of view, and clear, distortion-free images. Manufactured from premium materials, it features waterproof, durable, and reliable performance. Whether in pitch-black darkness, humid/dirty environments, or when hands are busy, these goggles deliver exceptional night vision performance. The built-in infrared illuminator emits "invisible" light, enabling target detection even in complete darkness. Customizable options include exterior colors (black/camouflage green/desert yellow), materials (ABS plastic/aluminum alloy/full metal), IP65/IP68 dust/water resistance ratings, and image tube colors (green/white with blue tint).
|
Product Attribute |
Application |
Night |
|
Style |
Head-mounted |
|
|
Structure |
Four-View Panorama |
|
|
Available for Export |
Yes |
|
|
Kind |
Image Intensifier Night Vision |
|
|
Producer |
China |
|
Technical Specifications |
Generation(IIT) |
Gen2+ |
|
Resolution(lp/mm) |
60-64 |
|
|
Figure Of Merit（FOM） |
1400-1800 |
|
|
Sensitivity（µ A/lm） |
700-1000 |
|
|
SNR |
23-28 |
|
|
Luminance Gain（cd/㎡/lx） |
8000-12000 |
|
|
Photocathode Type |
S25 |
|
|
Magnification（X） |
1 |
|
|
FOV （deg,°） |
120x50 +/-2 |
|
|
Focal Length |
22.5 |
|
|
Diopter Adjustment（deg,°） |
+2~-2 |
|
|
Parallelism of Optical Axis |
<0.1 ° /0.5 |
|
|
MTF |
120lp/mm |
|
|
Optical Distortion |
<0.5% Max / 3% Max |
|
|
Relative Illumination |
>75% |
|
|
Range of Focus (m) |
0.25m to infinity |
|
|
Dimensions（mm） |
231 X 108 X 84 |
|
|
Weight（kg） |
0.795 |
|
|
Switch Style |
Rotary switch |
|
|
Switch Position |
OFF / ON / IR / AUTO |
|
|
Power Supply (v) |
2.8-4.2 |
|
|
Battery Type (v) |
1 X CR123A battery / Battery Pack（4 X CR123A） |
|
|
Battery Life（h） |
30 h – 80 h |
|
|
Low Battery Indicator |
Optional |
|
|
Overall Power Consumption |
<0. 2W |
|
|
Bright Light Cut-off |
Yes |
|
|
Automatic Brightness Control |
Yes |
|
|
Multilayer Wideband Lens Coating |
Yes |
|
|
Flip-Up On-Off |
Yes |
|
|
Infrared Illuminator |
Optional |
|
|
Single side flip folding |
Yes |
|
|
Eye Distance Range Locking Function |
Yes |
|
|
Eye Distance Adjustment Range（mm） |
58-72 |
|
|
Exit Pupil Distance （mm） |
36 |
|
|
Exit Pupil Diameter （mm） |
7 |
|
|
Operating Temperature (°C ) |
-40 to +55 |
|
|
Storage Temperature(°C ) |
-40 to +55 |
|
|
Relative Humidity |
5%-98% |
|
|
MTTF (h) |
10000 |
|
|
Environmental Rating |
IP65/ IP67 |
|
|
Guarantee(yr) |
1 |
