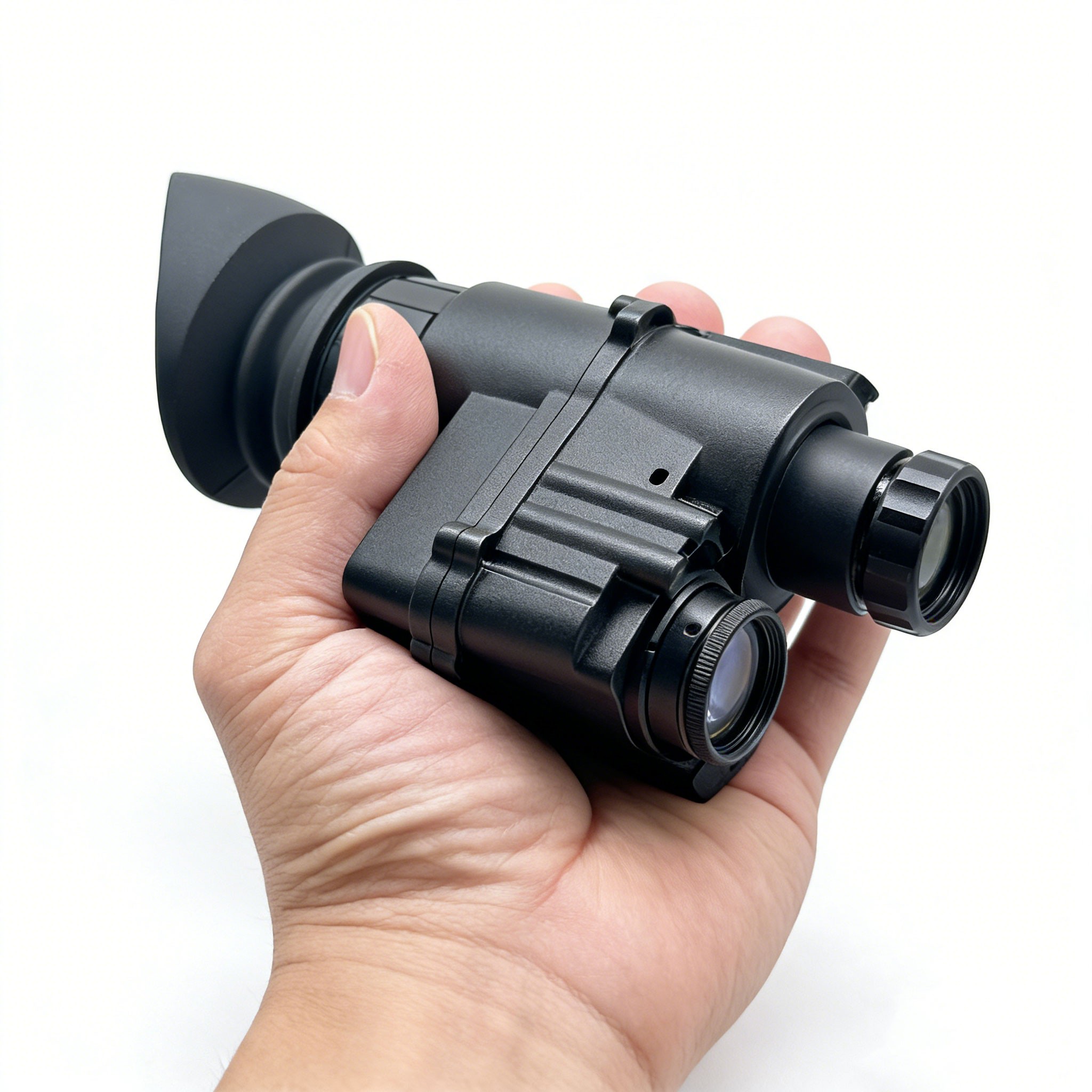

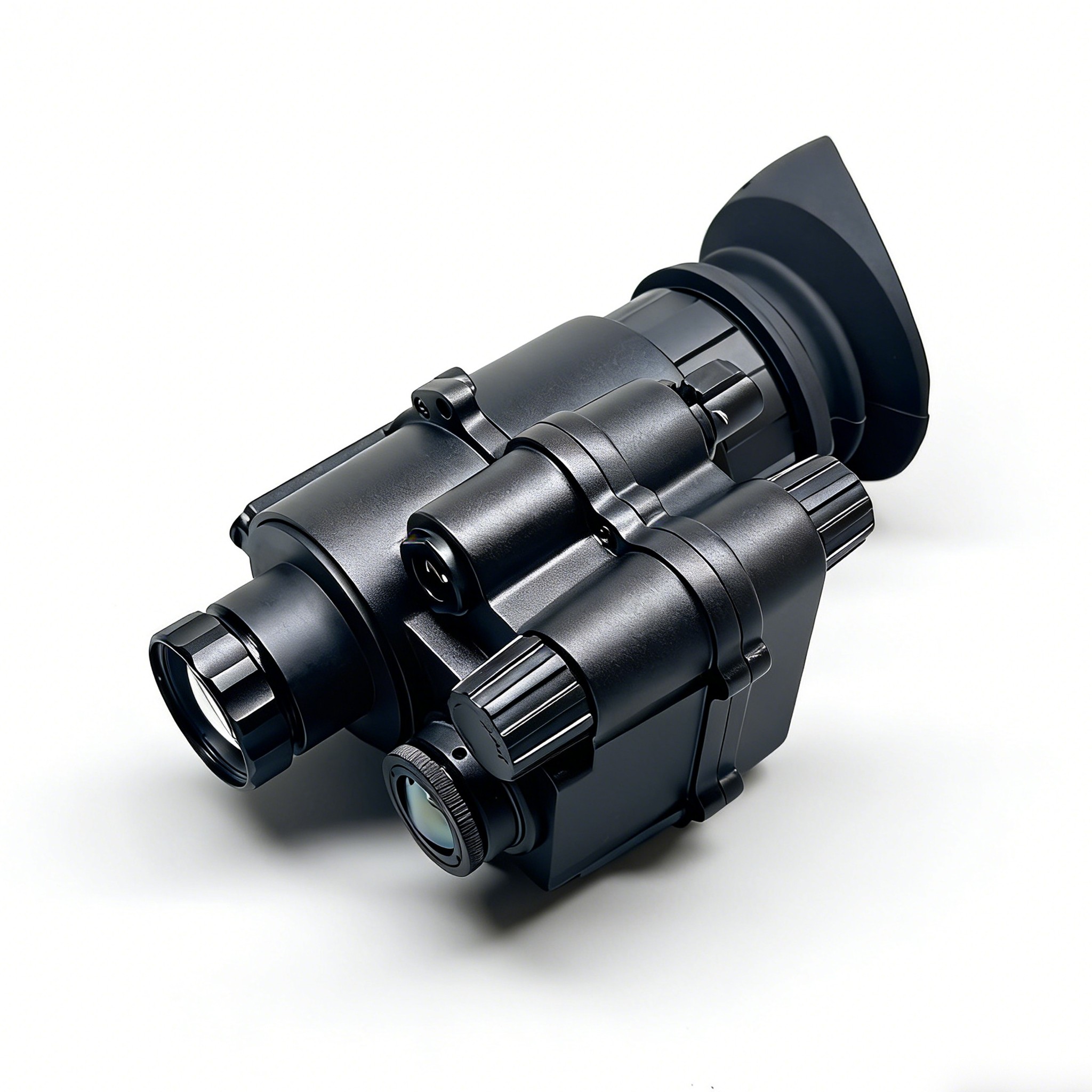

DAKINGNV-DF220 Enhanced Nihgt Vision Goggle

describe:

★Optional 2nd Gen+ (quasi-3rd Gen) image enhancer: This night vision device offers customizable 2nd Gen+ or quasi-3rd Gen image enhancement options to meet diverse user needs.

★The ultra-wideband multilayer anti-reflective coating lens utilizes advanced coating technology to enhance light transmission, significantly improving the night vision device's optical performance and delivering clearer, brighter images.

★Flexible usage options: Compatible with head-mounted devices like helmets and steel helmets, it can also be used as a handheld device or worn directly on the head.

★Foldable eyepiece light shield enhances concealment. The foldable eyepiece light shield prevents light leakage at the eyepiece, improving user concealment.

★Upgradable to IP68 protection (default: IP65 dust and water resistance), with optional IP68 upgrade for rugged operation in extreme environments.

★ Features built-in protection against harsh light. When ambient light intensity exceeds 40Lux, the device automatically cuts power within 10 seconds to safeguard the image intensifier and prevent eye damage from intense light.

★Flip-up standby mode: When the device is rotated 90 to 120 degrees upward, it automatically enters standby mode; when rotated downward, it automatically powers on.

★Built-in infrared fill light

★The infrared image display supports adjustments for brightness, contrast, edge intensity, and detail enhancement

★Built with a fully aluminum alloy frame, the night vision device ensures robust durability in all environments, delivering stable and reliable performance.Supports electronic compass, barometer (pressure, altitude, temperature), pitch and horizontal angle, and GPS

★Infrared thermal imaging supports image mode switching between white-hot, black-hot, and red-hot target highlighting with contour outlining

★Built with a fully aluminum alloy frame, the night vision device ensures robust durability in all environments, delivering stable and reliable performance.Supports digital zoom with 1-8x magnification (1X,2X,4X,8X) adjustment

★Built with a fully aluminum alloy frame, the night vision device ensures robust durability in all environments, delivering stable and reliable performance.Supports date and time adjustment and battery level display

★Customizable low-light image gain adjustment. This feature is not enabled by default.

★Built with a fully aluminum alloy frame, the night vision device ensures robust durability in all environments, delivering stable and reliable performance.


Appearance

monocular

Dimensions,mm

107 x 62 x 82

Weight,g

359±2

Operating Temperature Range,

-40℃ ~ +60℃

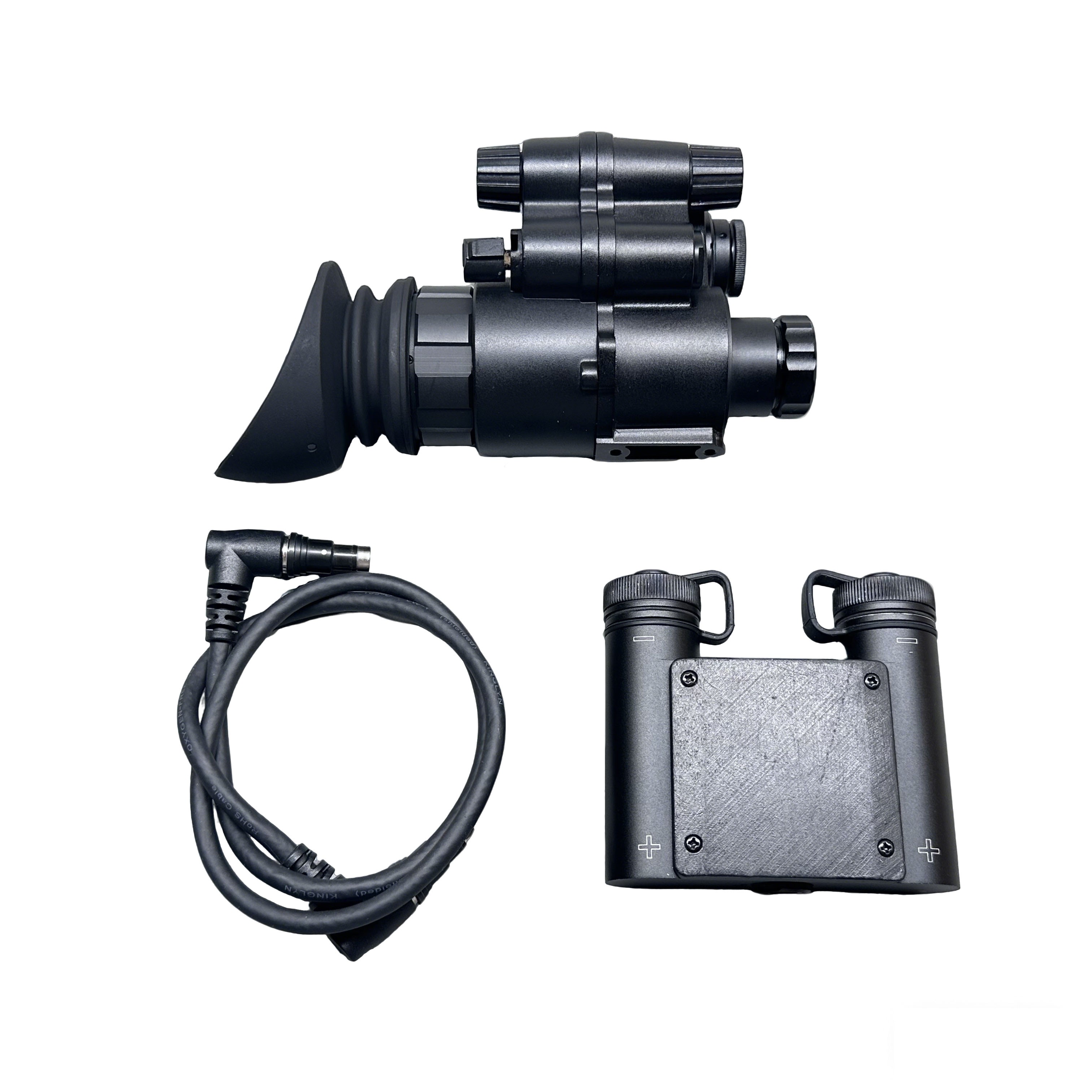

Battery Type

18650*2

Operating Time on Battery Pack,h

Enhanced Display≥8


Image Intensifier≥100

Degree of Protection, lP code

IP65Upgradable to IP68

Nihgt Vision Goggle

Generation

Gen2+ / Gen3+

Resolution, Lp/mm

60-64 / 64-72

FOM

1400/1600/1800/2000

Response Rateµ A/lm

700-1000 / 850-1200

SNR

23-28 / 28-32

Brightness Gaincd//lx

8000-12000 / 10000-20000

Type of Cathode Surface

S25 / GaAs

Tubular imaging color

Green Phosphor / White Phosphor

Magnification, X

1X

Lens System

F1.223mm

Eye Relief, mm

25

Exit Pupil Diameter,mm

15

Adjustment, D

-3.5~+2.5

FOV, °

42°

Range of Focus, mm

250mm to infinity

Infrared Illuminator

Yes (Built-in with flood lens)

Bright source protection

Yes

Brightness Control

Customizable

Thermal Image

Type

VOx Uncooled

Resolution, pixels

640 x 512

Pixel pitch, μm

12

NETD, mK

<30

Frame Rate, Hz

50

Display

OLED

Display Resolution, pixels

1600 x 1200

Display Mode

White hot, Black hot,highlighting,outline

Lens System, mm

F1.0,13

FOV, °HFOVxVFOV

32.9° x 26.6°

Digital Zoom

Yes1-81X2X4X8X

Brightness Control

Yes

Contrast Control

Yes

Hook Edge Control

Yes

Image Details Control

Yes

Azimuth Indication

Yes

GPS coordinate

Yes

Pitch/Inclination angle

Yes

Barometer (pressure, altitude, temperature)

Yes

Standby

Yes

Date and time adjustment

Yes

Electric Quantity Display

Yes

Halftone Correction

Yes

Halo Compensation

Yes

Language Selection

Yes

Recognition Distance Specifications



Human target1.7m x 0.5m

Detection 1500m


Recognition 400m


Identification 200m



Vehicle target4.6m x 2.3m

Detection 3000m


Recognition 1000m


Identification 500m
